Clean Compressed Air & Gas Back Pressure Regulators & Accessories
Pharma clean compressed air and gas, back pressure regulating valves, 1/4" - 3/4" (DN8 - DN20), NPT, tri-clamp, weld ends, very low to medium flow, manual or air augmented, Jorlon™ lifetime diaphragm warranty.

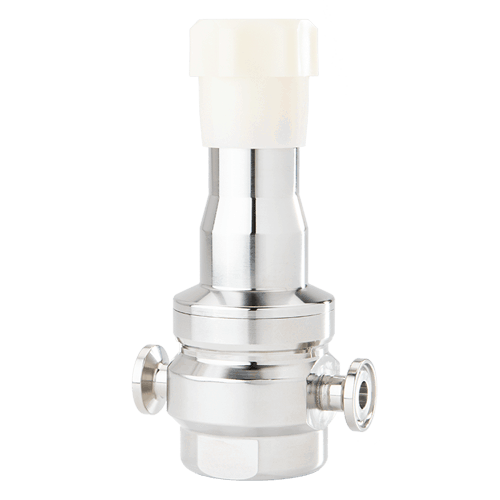

JSB Series ⟶
Manual Or Air Loaded, Low To Medium Flow, Sanitary Back Pressure Regulator
Size ranges: 1/2" & 3/4"; Cv's: 0.8, Cv for relief valve sizing: 1.9; 0.5, Cv for relief valve sizing is 0.6
Spring range: 8-40 psi; 35-60 psi; 50-125 psi

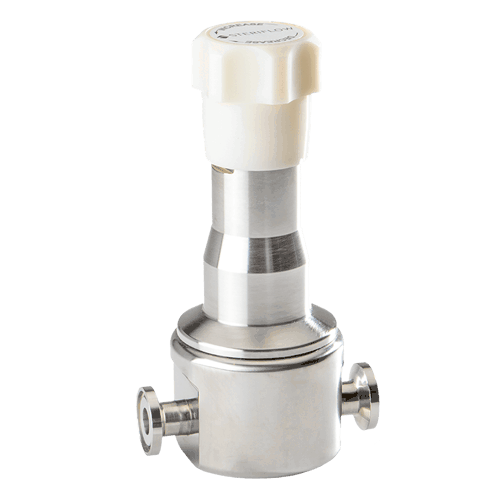

JSBLF Series ⟶
Manual or Air Loaded, Low Flow, Jorlon Diaphragm with lifetime warranty
Size ranges: 1/2" & 3/4"; Cv's: 0.5, 0.15, 0.25, 0.35
Spring range: 5-50 psi; 25-100 psi; 50-150 psi; 75-250 psi; 100-450 psi; 200-450 psi
JSBLFLP Series ⟶
Compact, High Purity, Low Flow, Low Pressure, Back Pressure, Jorlon Diaphragm with lifetime warranty
Size ranges: 3/8", 1/2", 3/4"; Cv's: 0.5, for relief valve sizing: 0.15; 0.15 , for relief valve sizing:0.25; 0.25, for relief valve sizing: 0.35; 0.35,l for relief valve sizing: 0.45
Spring range: 2-15 psi; 10-25 psi; 15-40 psi
JSBLP Series ⟶
Manual or Air Augmented, Low Pressure, Low to Medium Flow, Jorlon Diaphragm
Size ranges: 1/2" & 3/4"; Cv's: 0.8, 0.5
Spring range: 1-15 psi; 5-15 psi; 15-25 psi; 25-50 psi
Your List
Email List
Get A Quote
Steriflow’s clean compressed air and gas regulator product line offers some industry firsts, and is the most reliable and complete product application in existence. From sterile gas blanketing for stainless and single use vessels size 2L and larger, to bioreactor sparge or incubator regulation and high flow for air drying after sanitization, our BPRV range has all of your applications covered.
- Standard gas regulator flow range that range from 2L/min at 1 psi (70 bar) to 8000L/min at 75 psi (5,17 bar)
- Blanketing gas regulator flow ranges from 2L/min at 1/2″ w.c. (1.25 mbar) to 8000L/min at 5 psi (0,35 bar)
- Lifetime warranty on our Jorlon PTFE diaphragm
