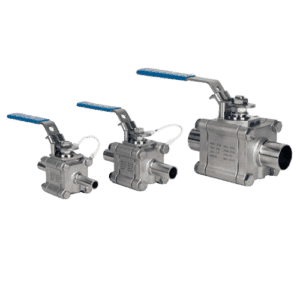

Mark 9020 BPE Series

• New DIN 11866-A and B (ISO) tube weld end models available
• ASME BPE 2009 guidance compliance
• Traceable industry grade high density 316L body, ball, stem and end caps with <3% ferrite standard, 1% optional
• Certified TFM 1600 body seal, seat, thrust washer, and packing material meet FDA 21 CFR 177 and final form materials certified to meet USP Class VI (in-vivo) and USP (in-vitro) testing requirements
• Documented surface finish on all wettable components is SF1 (20 Ra mechanical polish) SF4 (15 Ra µin mechanical/elecropolish optional)
• Ball port has identical ID as inlet/outlet tubing to prevent holdup
• Pressure ratings up to 1000 psig @ 100°F
• Anti-blowout stem design
• ISO 5211 actuator mounting pads
• Integral lockout/tagout facility
• Live loaded packing to insure against leaks or contaminant ingress

• Size: 1/2″ – 4″ (DN15 – DN100)
• Body Material/Drain Option: CF3M 1% Ferrite; CF3M 1% Ferrite with 1/2″ tri-clamp body condensate drain
• End Connections: ASME BPE, Tri-clamp or extended tube weld ends; DIN 11866-A or B (ISO) extended tube weld ends standard and in stock
• Max Pressure/Temperature: To 1000 psig (69 barg) @ 100ºF (38ºC); 500 psig (34,5 barg) @ 295º (146ºC)
• Seat & Seal Material: TFM 1600 non-cavity filler seats and all seals. FDA, USP <88> Class VI and USP <87>
• Wetted Material & Surface Finish: ASTM A351 CF3M with <3% or 1% ferrite SF1, 20 ra µin (0.5 Ra µm) mechanical polish standard SF4, 15 Ra µin (0,4 µm) electropolish optional

• CRN (Canadian Registration Number)
• PED Category 1 (Pressure Equipment Directive)
• ATEX Certified
• All products use FDA and USP Class VI approved soft goods and seals where possible. Consult each product data for details

Actuator Sizing Program

1/2″ Mark 9020 with Tri-Clamp Ends
1/2″ Mark 9020 with Tube Ends
3/4″ Mark 9020 with Tri-Clamp Ends
3/4″ Mark 9020 with Tube Ends
1″ Mark 9020 with Tri-Clamp Ends
1″ Mark 9020 with Tube Ends
1-1/2″ Mark 9020 with Tri-Clamp Ends
1-1/2″ Mark 9020 with Tube Ends
2″ Mark 9020 with Tri-Clamp Ends
2″ Mark 9020 with Tube Ends
2-1/2″ Mark 9020 with Tri-Clamp Ends
2-1/2″ Mark 9020 with Tube Ends
3″ Mark 9020 with Tri-Clamp Ends
3″ Mark 9020 with Tube Ends
4″ Mark 9020 with Tri-Clamp Ends
4″ Mark 9020 with Tube Ends
