2-Way Sanitary Ball Valves

Three piece, full bore sanitary ball valve with controlled ferrite 316L construction, designed following ASME BPE guidelines for biopharmaceutical and pharmaceutical applications.

  • Clean utilities: clean steam, USP PW, CIP, acids and solvents
  • Clean compressed air and gas
  • Pneumatic powder conveyance
  • Process and clean utility waste lines
Features & Benefits

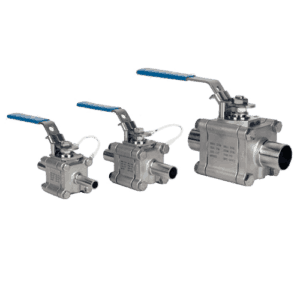

  • Mark 9020D DIN Series valve ends match DIN 11866 Part A (DIN 11850 Series 2) tube
  • Through bore matches tube inside diameter
  • Valves conform to ASME BPE guidelines



Specifications
  • Size: 1/2″ – 4″ (DN15 – DN100)
  • End Connections: ASME BPE, Tri-clamp or extended tube weld ends; DIN 11866-A or B (ISO) extended tube weld ends standard and in stock
  • Max Pressure/Temperature: To 1000 psig (69 barg) @ 100ºF (38ºC); 500 psig (34,5 barg) @ 295º (146ºC)
  • Seat & Seal Material: TFM 1600 non-cavity filler seats and all seals. FDA, USP <88> Class VI and USP <87>
  • Wetted Material & Surface Finish: ASTM A351 CF3M with <3% or 1% ferrite SF1, 20 ra µin (0.5 Ra µm) mechanical polish standard SF4, 15 Ra µin (0,4 µm) electropolish optional
Approvals
  • CRN (Canadian Registration Number)
  • ATEX Certified
  • All products use FDA and USP Class VI approved soft goods and seals where possible. Consult each product data for details

Get A Quote

Related Products

Mark 9020S ISO Series

2 Way Ball Valves

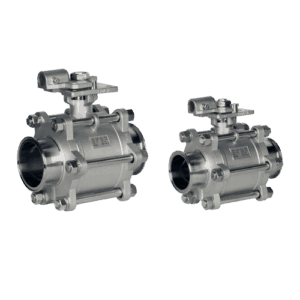

Mark 9020 BPE Series
