Single or Double Sterile Access, Manual or Pneumatically Actuated

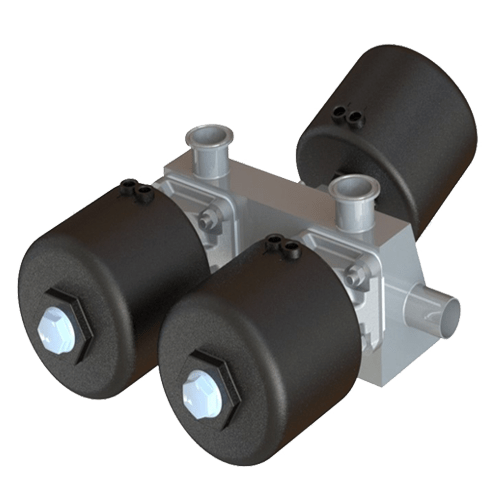

Barstock single block valve with single or double sterile access, manual or pneumatically actuated.

Features & Benefits

Applications:

Single block valve with single or double sterile access valves for manual on/off or air actuated flow control for transfer, diversion or sample of drug process additives, WFI and other critical system fluids.

Upstream:

  • Bioreactor/fermenter: for sampling or transfer of critical process fluids, inputs or WFI upstream of, and prior to opening the main valve.

Downstream:

  • For sampling or transfer of critical process fluids, buffers or WFI upstream of and prior to, opening the main valve in the following areas: separation, filtration, chromatography, formulation, fill finish

Buffer and media prep:

  • For sampling or transfer of critical process fluids, buffers or WFI upstream of, and prior to opening the main valve.
Specifications

Available sizes:

  • Run connections: 1/2″ – 4″ (DN15 – DN100)
  • Access port connection: 1/2″ – 4″ (DN15 – DN100); drop connection must be <= the run connection

Connection type:

  • ASME BPE Tri-clamp, extended tube end standard. Additional connection types available as options upon request.
  • Sample port configurations available as special options

Materials:

  • Standard: Barstock, ASME SA479 316L (UNS 31603) or EN 10272:2000 Gr 1.4435
  • Optional: AL-6XN® C-22 and others readily available

Surface finish:
Wetted Interior

  • Standard: ASEM BPE SF1, 20 Ra µin (0,5 Ra µm) and ASME BPE SF5, 20 Ra uin (0,5 um) electropolish
  • Optional: ASME BPE SF4, 15 Ra µin, (0,4 µm) electropolish. Better finish upon request

Exterior:

  • Standard: 40 Ra µin (1,0 Ra µm) and better as option
  • Optional: 20 Ra µin (0,5 Ra µm)and better upon request
Approvals

CRN
